ACTIVE HARMONIC FILTER

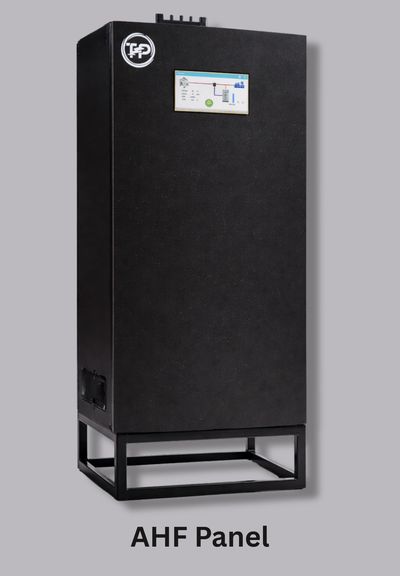

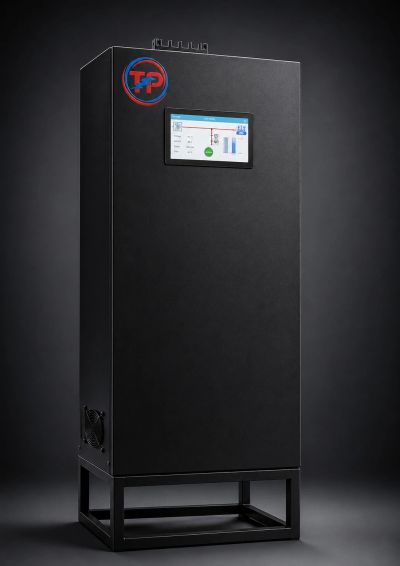

AHF Panel (Active Harmonic Filter Panel) is a smart, compact power quality compensator designed to effectively eliminate harmonics and improve overall system performance. This active harmonic filter solution is available in a wide operating range from 30 Amps to 150 Amps and supports SVG compensation from 25 kVAr to 100 kVAr, ensuring low losses and high efficiency through advanced 3-level topology.

As a high-performance harmonic filter panel, the system supports hybrid compensation, allowing seamless integration with APFC for reactive power control and RTPFC for dynamic load applications. This makes the active harmonic filter panel ideal for industries facing fluctuating loads and complex power quality challenges.

With flexible mounting options, intelligent operating modes, quick installation, and fast commissioning, this AHF panel enhances power quality while extending equipment life. A full-color touch display enables easy monitoring and control, reflecting the advanced design standards followed by leading active harmonic filter manufacturers.

For installations requiring neutral current reduction and billing optimization, the active harmonic filter can also be combined with an NPFC System to achieve comprehensive power quality and energy efficiency improvement.

• 30Amps to 150Amps AHF Range
• 25Kvar to 100Kvar SVG Range
• 3-Level Topology
• Low Losses
• Hybrid Compensation
• Flexible mounting
• Smart operation mode
• Easy to Install
• Quick Commissioning
• Full Color Touch Display
